Programming Merlin Garage Door Remote Controls

A Merlin remote that has stopped working can leave the car stuck outside, delay a tenant, or make securing a workshop far more difficult than it should be. If you are looking for how to programme Merlin remote controls, the good news is that many Merlin garage-door openers can accept a new remote in a few minutes. The key is using a remote that matches your specific motor or receiver, then following the right coding method.

Merlin has used several radio systems over the years. A remote that looks similar, or has the same number of buttons, is not automatically compatible. Before pressing any learn button, identify the opener and check the remote type.

Before you programme a Merlin remote

Start at the motor, not the old remote. Look for the Merlin model label on the motor head, usually on the side, underneath the light cover or near the control buttons. Take note of the model number and the colour of the learn button if there is one. A photo of the motor label and your existing remote is often the quickest way to confirm what you need.

Many later Merlin openers use a rolling-code system. These remotes are programmed directly into the opener's memory using its learn button. They cannot usually be copied button-for-button from another working remote, even if a universal cloning remote claims it can duplicate any signal.

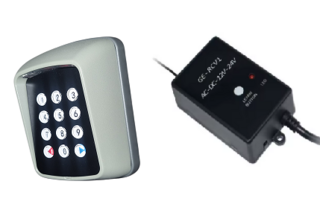

Older Merlin systems may use dip switches - a row of tiny switches inside the remote and receiver. In that case, programming means matching the switch positions exactly. Some installations also have an external receiver mounted near the motor, especially on older doors, gates, commercial sites and systems where a receiver has been added later. The receiver, rather than the motor, is where the remote needs to be coded.

Check that the door is fully closed before beginning. Keep people, pets and vehicles clear of the doorway, particularly if you are working with a gate or an older opener with uncertain safety settings.

How to programme a Merlin remote using the learn button

For most current Merlin rolling-code motors, the process is straightforward. You will need access to the motor head and, if it is mounted high on the ceiling, a stable ladder. Do not balance on a chair, vehicle or workbench.

First, locate the learn or programme button on the opener. Depending on the Merlin model, it may sit behind the light cover, beside the terminal connections, or under a small access panel. It is commonly labelled LEARN, PROGRAM, CODE or P, although the layout varies between models.

Press and release the learn button once. An LED near the button may glow or flash, and some motors make a click. The opener is now in learn mode for a short time, often around 30 seconds.

While the opener is in learn mode, press and hold the button on the new Merlin remote that you want to operate the door. Hold it until the motor light flashes, the opener clicks, or the courtesy light switches on and off. That response confirms the remote code has been stored. Release the button, wait a few seconds, then test the remote from outside the garage.

If the first attempt does not work, repeat the process slowly. Pressing the learn button for too long can put some motors into a different mode. More importantly, holding it down for an extended period may erase every remote stored in the opener. A short press and release is normally all that is required to add one remote.

Programming through a Merlin wall control

Some Merlin openers use a wall-mounted control panel with a menu, display or dedicated learn function. This is common on certain newer models and can be useful when the motor is difficult to reach. The exact button sequence depends on the wall control and opener series, so do not guess by holding buttons at random.

Look for a learn, settings or remote-programming option on the wall control. Once the opener indicates it is ready, press the desired button on the remote until the door motor confirms it has learnt the signal. If the wall control has no visible programming function, use the motor's learn button instead.

Programming an older Merlin remote with dip switches

If your remote has a battery cover that reveals small numbered switches, it is not programmed through a rolling-code learn procedure. Open the old working remote and the replacement remote, then compare the dip-switch positions. Each switch must be set the same way - up, down, on or off.

Do not rely on a quick glance. A single switch in the wrong position will stop the remote from operating the door. If there is no working remote, inspect the receiver or motor control board for the same switch bank. Photograph the setting before moving anything.

Dip-switch remotes are common on older installations, which is why identifying the system first can save considerable time. An incorrect modern remote will not communicate with a dip-switch receiver, and a dip-switch transmitter will not operate a rolling-code motor.
